Description
Shop genuine CSF products through CenCal with confidence. Orders are fulfilled and shipped directly by CSF, ensuring fast processing and accurate delivery every time.
One of the most apparent problems for the 2nd gen B58 Motor is the liquid-cooled charge air cooler system quickly heat soaks with no ability to recover. This would cause the intake air temperatures (IATs) to spike, resulting in the ECU cutting the power output of the vehicle, and eventually putting the car into limp mode. CSF engineers witnessed the overheating issue first-hand as they were in attendance at the Global Time Attack Finals at Buttonwillow Raceway in November 2019. Several new heavily modified Supra racecars could barely go two or three laps in moderate ambient conditions without having the car go into limp mode, forcing drivers to take a cool down lap (or two), with some even coming into the pits to have their front mount heat exchangers sprayed down with cold water.

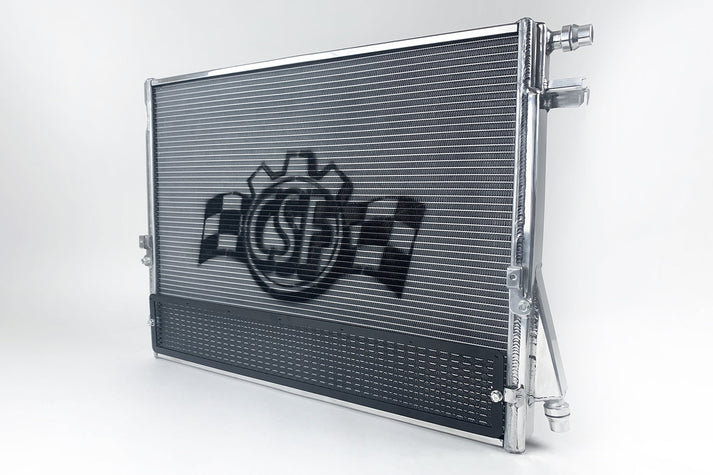

CSF’s B58 high-performance heat exchanger will be a critical component to keeping your Supra/BMW’s charge air cool, and out of limp mode. The upgraded heat exchanger is especially important when upgrading turbos and/or running performance tuning software. The original 2nd Gen B58 heat exchanger is a 1-row unit that is 25mm thick. In comparison, CSF has used its industry-exclusive world’s largest 2-row core (68mm) with CSF’s B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. The CSF improved design, includes billet transmission cooler mounts, and metal rock guard with improved airflow characteristics. CSF is the only company to include a rock guard and incorporate OEM transmission cooler mounting points for a true plug-and-play “drop-in” fit.
Click Here for the Full Press Release
FEATURES
Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)
Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Coolant and Engine Oil Temperatures
2-Row, 42mm Ultra High Performance Core & 6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology
CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Includes Rock Guard & Transmission Oil Cooler Mounting Kit (Industry Exclusive)
“Drop-in” Fit
2-Year Limited Warranty
Smooth Satin Finish
Tested and Proven by CSF’s Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
APPLICATIONS
Year Range
Make
Chassis Code
Model
Trim
Engine / Trans / Etc
Notes
2019-2022
BMW
G2X
330i
–
Turbocharged 2L L4
–
2019-2022
BMW
G2X
330i xDrive
–
Turbocharged 2L L4
–
2021-2025
BMW
G2X
430i
–
Turbocharged 2L L4
–
2022-2025
BMW
G2X
430i Gran Coupe
–
Turbocharged 2L L4
–
2021-2025
BMW
G2X
430i xDrive
–
Turbocharged 2L L4
–
2022-2025
BMW
G2X
430i xDrive Gran Coupe
–
Turbocharged 2L L4
–
2023-2025
BMW
G42
M240i
–
Turbocharged 3L L6
–
2022-2025
BMW
G42
M240i xDrive
–
Turbocharged 3L L6
–
2020-2025
BMW
G2X
M340i
–
Turbocharged 3L L6
–
2020-2025
BMW
G2X
M340i xDrive
–
Turbocharged 3L L6
–
2021-2025
BMW
G2X
M440i
–
Turbocharged 3L L6
–
2024-2025
BMW
G2X
M440i Gran Coupe
–
Turbocharged 3L L6
–
2021-2025
BMW
G2X
M440i xDrive
–
Turbocharged 3L L6
–
2022-2025
BMW
G2X
M440i xDrive Gran Coupe
–
Turbocharged 3L L6
–
2019-2022
BMW
G29
Z4
–
Turbocharged 2L L4
–
2019-2022
BMW
G29
Z4
–
Turbocharged 3L L6
–
2024
Toyota
A90/A91
GR Supra
45th Anniversary Edition
Turbocharged 3L L6
–
2023
Toyota
A90/A91
GR Supra
A91-MT Edition
Turbocharged 3L L6
–
2020-2025
Toyota
A90/A91
GR Supra
–
Turbocharged 3L L6
–
2023-2025
Toyota
A90/A91
GR Supra
Premium
Turbocharged 3L L6
–
2024
Toyota
A90/A91
GR Supra
Premium 45th Anniversary Edition
Turbocharged 3L L6
–
2021-2022
Toyota
A90/A91
GR Supra
–
Turbocharged 2L L4
–
OEM Part Numbers
BMW: 17 11 8 666 811
BMW: 17-11-8-666-811
BMW: 17118666811
Toyota: 16400 WAA03
Toyota: 16400-WAA03
Toyota: 16400WAA03.
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit CFS Page.
SKU# 8154 Warranty Term: 2 years
