Description
Shop genuine CSF products through CenCal with confidence. Orders are fulfilled and shipped directly by CSF, ensuring fast processing and accurate delivery every time.
The BMW S63 Twin-Turbo V8 is the beating heart of the F1X M5/M6 and F9X M5/M8, delivering incredible performance. Over the years, CSF has been a key player in pushing the power limits of the S63 with its Twin Charge Air Coolers (CSF #8109 & CSF #8178). Today, many M5s, M6s, and M8s are producing well over 1000HP, but with increased power comes increased heat.
As power levels climb, so do oil temperatures, with some owners reporting temperatures exceeding 240°F (115°C) on hot track days. With power limits being pushed further than ever and many of these M cars aging, factory cooling systems struggle to keep up.

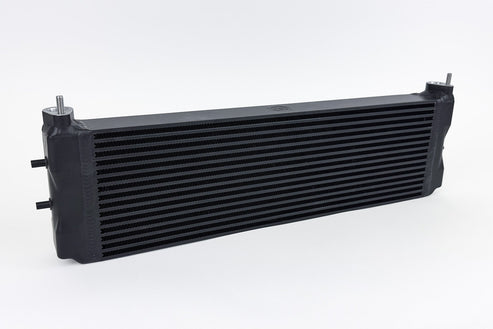

Steve Dinan’s Carbahn originally approached CSF about making this oil cooler to compliment their new S63 Stroker Kit. Carbahn engineers worked closely with CSF to design an oil cooler that could handle the power and heat increases. Now, CSF is proud to introduce the High-Performance Engine Oil Cooler for the F1X M5/M6 & F9X M5/M8, a must-have upgrade for S63 owners.
Click Here for the Full Press Release & Additional Product Details
FEATURES
High Efficiency & Rugged Durability Bar/Plate Design
Cast End Tanks with 100% TIG-Welded Construction
Developed with CarBahn Autoworks to handle the heat of their S63 Stroker Kit
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
Individually Leak and Pressure Tested
True Plug-and-Play “Drop-in Fit” Installation. It is recommended to trim the OE Ducting and Lower Radiator Cradle for better fitment.
Satin Black Finish
2-Year Limited Warranty
APPLICATIONS
Year Range
Make
Chassis Code
Model
Trim
Engine / Trans / Etc
Notes
2012-2016
BMW
F10
M5
–
Turbocharged 4.4L V8
–
2018-2023
BMW
F90
M5
–
Turbocharged 4.4L V8
–
2019-2023
BMW
F90
M5
Competition
Turbocharged 4.4L V8
–
2022
BMW
F90
M5
CS
Turbocharged 4.4L V8
–
2020
BMW
F90
M5
Edition 35 Years
Turbocharged 4.4L V8
–
2012-2018
BMW
F12/F13
M6
–
Turbocharged 4.4L V8
–
2014-2019
BMW
F06
M6 Gran Coupe
–
Turbocharged 4.4L V8
–
2020-2025
BMW
F91/F92
M8
–
Turbocharged 4.4L V8
–
2020-2025
BMW
F91/F92
M8
Competition
Turbocharged 4.4L V8
–
2020-2025
BMW
F93
M8 Gran Coupe
–
Turbocharged 4.4L V8
–
2020-2025
BMW
F93
M8 Gran Coupe
Competition
Turbocharged 4.4L V8
–
2019-2025
BMW
G14/G15
M850i xDrive
–
Turbocharged 4.4L V8
–
2020-2025
BMW
G16
M850i xDrive Gran Coupe
–
Turbocharged 4.4L V8
–
2025-2026
BMW
G9X
M5
–
Turbocharged 4.4L V8
–
2025-2026
BMW
G9X
M5 Touring
–
Turbocharged 4.4L V8
–
OEM Part Numbers
BMW: 17212284260
BMW: 17 21 2 284 260
BMW: 17-21-2-284-260
BMW: 17228746756
BMW: 17 22 8 746 756
BMW: 17-22-8-746-756
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit CFS Page.
SKU# 8317 Warranty Term: 2 years
